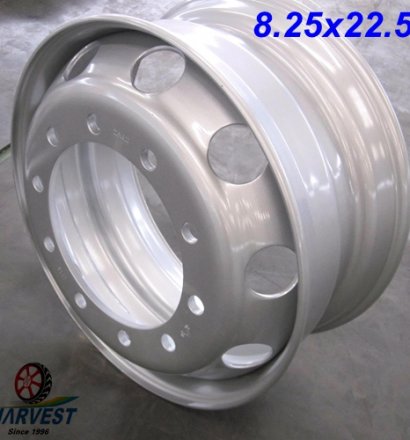

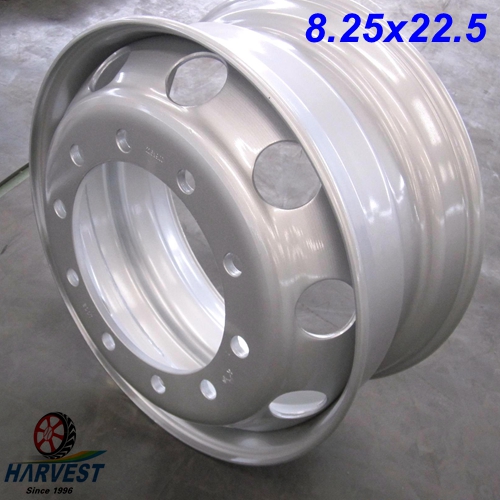

Tubeless steel rim 8.25x22.5
The main features:
8.25x22.5
Truck/Coach steel wheels
Product parameters
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset |
| 22 | 8 | φ32 | φ275 | φ214 | 7 | 14 | SR22 | 168 |
| 23 | 8 | φ24 | φ275 | φ221 | 7 | 14 | straight | 165 |
| 24 | 8 | φ27 | φ275 | φ221 | 7 | 14 | SR18 | 170 |
| 25 | 8 | φ32 | φ275 | φ214 | 7 | 16 | SR22 | 168 |
| 26 | 8 | φ32 | φ285 | φ221 | 7 | 14 | SR22 | 170 |
| 27 | 8 | φ32 | φ285 | φ221 | 7 | 16 | SR22 | 169 |
| 28 | 10 | φ26 | φ285.75 | φ220 | 7 | 14 | straight | 169 |
| 29 | 10 | φ26 | φ285.75 | φ220 | 7 | 16 | straight | 169 |
| 30 | 10 | φ32 | φ285.75 | φ222 | 7 | 14 | SR22 | 169 |
| 31 | 10 | φ32 | φ285.75 | φ222 | 7 | 16 | SR22 | 169 |
| 32 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 169 |
| 33 | 10 | φ26 | φ335 | φ281 | 7 | 16 | straight | 169 |
| 34 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 169 |
| 35 | 10 | φ27 | φ335 | φ281 | 7 | 16 | SR18 | 169 |
| 36 | 8 | φ32 | φ285 | φ221 | 8 | 16 | SR22 | 169 |
| 37 | 10 | φ26 | φ285.75 | φ220 | 8 | 16 | straight | 169 |
| 38 | 10 | φ32 | φ285.75 | φ222 | 8 | 16 | SR22 | 169 |
| 39 | 10 | φ26 | φ335 | φ281 | 8 | 16 | straight | 169 |
| 40 | 10 | φ27 | φ335 | φ281 | 8 | 16 | SR18 | 169 |
| 41 | 10 | φ26 | φ285.75 | φ220 | 6 | 11 | straight | 168 |
