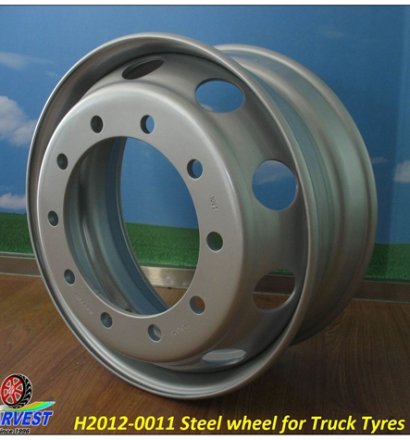

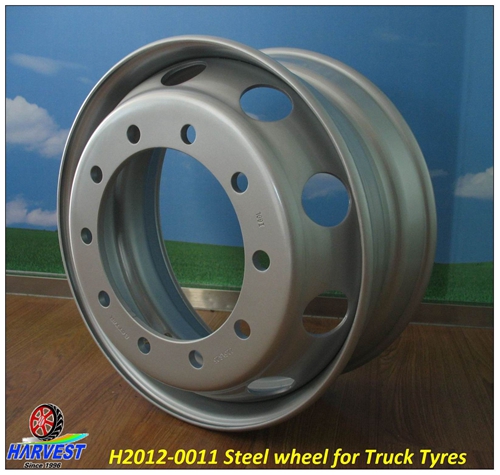

Tubeless steel rim 9.00x22.5
The main features:
9.00x22.5
Truck/Coach steel wheels
Product parameters
| NO. | bolt hole | bolt dia | PCD | Center hole | rim (mm) | disc(mm) | bolt hole type | offset |
| 42 | 8 | φ32 | φ275 | φ214 | 7 | 14 | SR22 | 175 |
| 43 | 8 | φ32 | φ275 | φ214 | 7 | 16 | SR22 | 175 |
| 44 | 8 | φ32 | φ285 | φ221 | 7 | 14 | SR22 | 175 |
| 45 | 8 | φ32 | φ285 | φ221 | 7 | 16 | SR22 | 175 |
| 46 | 10 | φ26 | φ285.75 | φ220 | 7 | 14 | straight | 175 |
| 47 | 10 | φ26 | φ285.75 | φ220 | 7 | 16 | straight | 175 |
| 48 | 10 | φ32 | φ285.75 | φ222 | 7 | 14 | SR22 | 175 |
| 49 | 10 | φ32 | φ285.75 | φ222 | 7 | 16 | SR22 | 175 |
| 50 | 10 | φ26 | φ335 | φ281 | 7 | 14 | straight | 175 |
| 51 | 10 | φ26 | φ335 | φ281 | 7 | 16 | straight | 175 |
| 52 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 175 |
| 53 | 10 | φ27 | φ335 | φ281 | 7 | 16 | SR18 | 175 |
| 54 | 8 | φ32 | φ285 | φ221 | 8 | 16 | SR22 | 175 |
| 55 | 10 | φ26 | φ285.75 | φ220 | 8 | 16 | straight | 175 |
| 56 | 10 | φ32 | φ285.75 | φ222 | 8 | 16 | SR22 | 175 |
| 57 | 10 | φ26 | φ335 | φ281 | 8 | 16 | straight | 175 |
| 58 | 10 | φ27 | φ335 | φ281 | 8 | 16 | SR18 | 175 |
| 59 | 10 | φ27 | φ335 | φ281 | 7 | 14 | SR18 | 0 |
| 60 | 10 | φ26 | φ335 | φ281 | 7 | 12 | straight | 0 |
| 61 | 10 | φ27 | φ335 | φ281 | 7 | 12 | SR18 | 0 |
