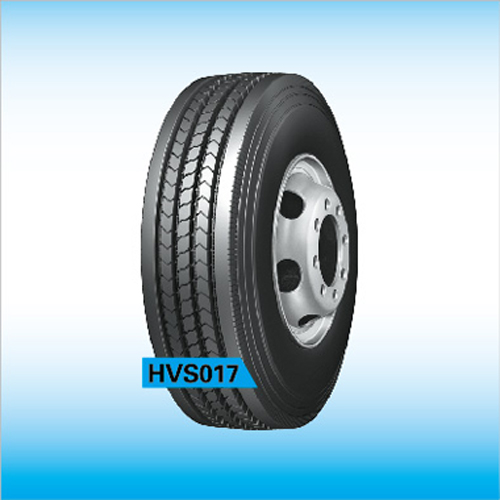

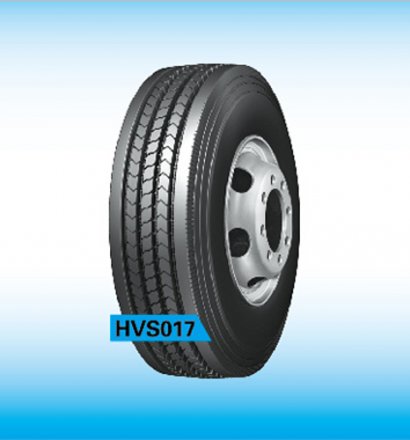

The main features:
The pattern of design for high speeding of driving on roads
Excellent performance under high speed of driving
Closed tire shoulder design,reducing side abrasion.
By four straight main slots and it delivers superior stability and drainage of driving
Low noise during driving,high wear resistance
| SIZE | PR | LOAD INDEX | SPEED SYMBOL | PATTERN DEPTH (mm) | STANDARD RIM | PERMITTED RIM | MAX LOAD （Kg） | PRESSURE (Kpa) | NEW TIRE INFLATED DIMENSION (mm) | ||
| S | D | OD | SW | ||||||||
| ±1.0% | ±3.5% | ||||||||||
| 11R22.5 | 16 | 146/143 | M | 15.50 | 8.25 | 7.5 | 3000 | 2725 | 830 | 1054 | 279 |
| 12R22.5 | 18 | 152/148 | M | 15.50 | 9.0 | 8.25 | 3350 | 3075 | 830 | 1085 | 300 |
| 295/80R22.5 | 18 | 152/148 | M | 17.00 | 9 | 8.25 | 3350 | 3075 | 830 | 1044 | 295 |
| 315/80R22.5 | 18 | 154/151 | M | 17.00 | 9 | 9.75 | 4000 | 3650 | 850 | 1076 | 312 |
