The main features:

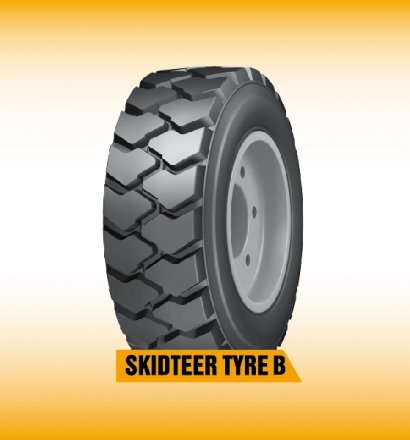

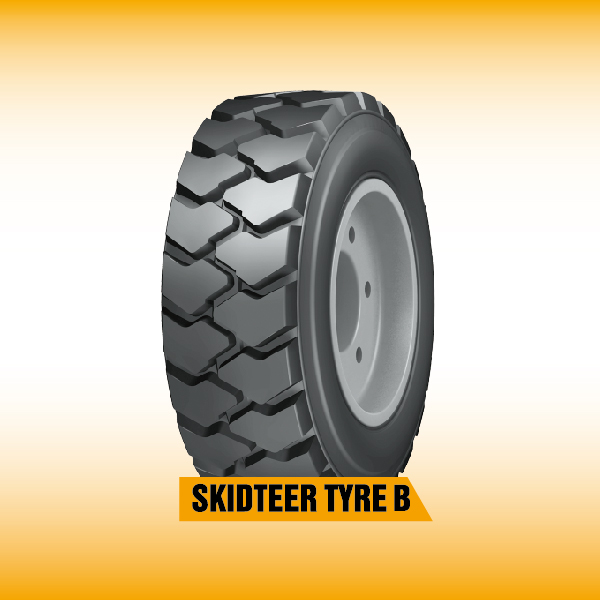

SKIDTEER TYRE B
Super deep, extra wide lugs feature a large center tread element for superior wear and puncture resistance
Optimum tread delivers fullest possible footprint
Designed for skid steer, compact tele-handlers and backhoe equipment
| SIZE | PLY RATING | PATTERN DEPTH (mm) | STANDARD RIM | NEW INFLATED SIZES (mm) | MAX LOAD （Kg） | PRESSURE (Kpa) | |||
| SW | OD | ||||||||
| 10-16.5 | 10 | 20 | 8.25 | 264 | 773 | 2135 | 520 | ||
| 12-16.5 | 10 | 20 | 9.75 | 307 | 831 | 2540 | 450 | ||
| 14-17.5 | 14 | 20 | 10.5 | 350 | 922 | 3870 | 550 | ||
