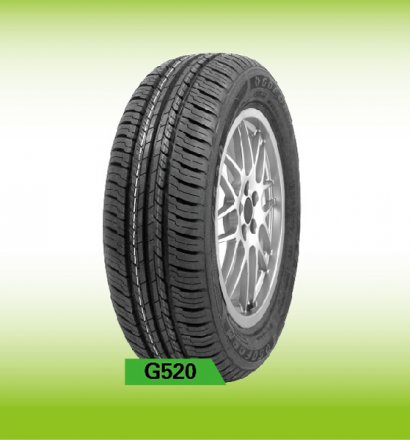

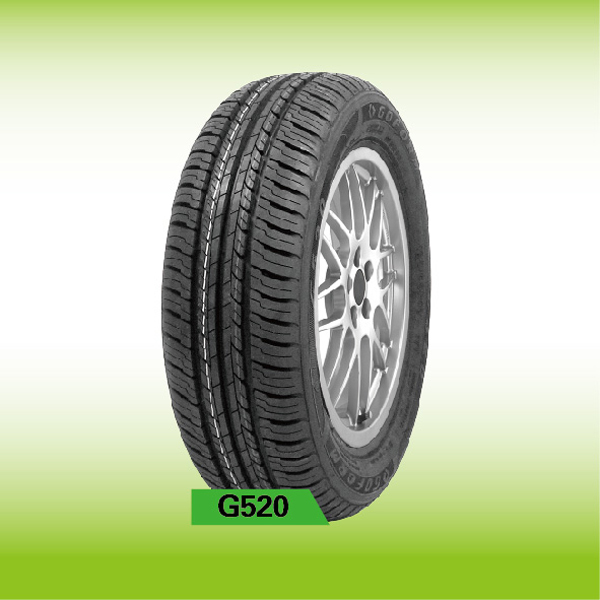

G520
The main features:
SIZE | LOAD INDEX | SPEED SYMBOL | STANDARD RIM | MAX LOAD (Kg) | PRESSURE(Kpa) | NEW TIRE INFLATED DIMENSION (mm) | |
OD | SW | ||||||
±1.0% | ±3.5% | ||||||
145/70R12 | 69 | T | 4.50B | 325 | 300 | 509 | 150 |
155/65R13 | 73 | T | 4.50B | 365 | 300 | 532 | 157 |
165/65R13 | 77 | T | 5.0B | 412 | 300 | 544 | 170 |
165/60R14 | 75 | T | 5J | 387 | 300 | 554 | 170 |
165/70R13 | 79 | T | 5.0B | 437 | 300 | 562 | 170 |
165/70R14 | 81 | H | 5J | 462 | 300 | 588 | 170 |
175/65R14 | 82 | H/T | 5J | 475 | 300 | 584 | 177 |
175/70R13 | 82 | T | 5.0B | 475 | 300 | 576 | 177 |
175/70R14 | 84 | H | 5J | 500 | 300 | 602 | 177 |
185/60R14 | 82 | H | 51/2J | 475 | 300 | 578 | 189 |
185/65R14 | 86 | H | 51/2J | 530 | 300 | 596 | 189 |
195/60R14 | 86 | H | 6J | 530 | 300 | 590 | 201 |
185/70R14 | 88 | H | 51/2J | 560 | 300 | 616 | 189 |
195/70R14 | 91 | H | 6J | 615 | 300 | 630 | 201 |
205/70R14XL | 98 | H | 6J | 750 | 340 | 644 | 209 |
