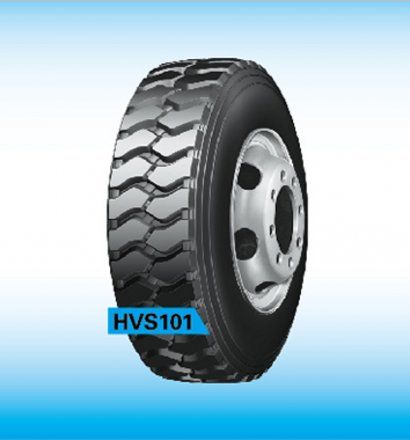

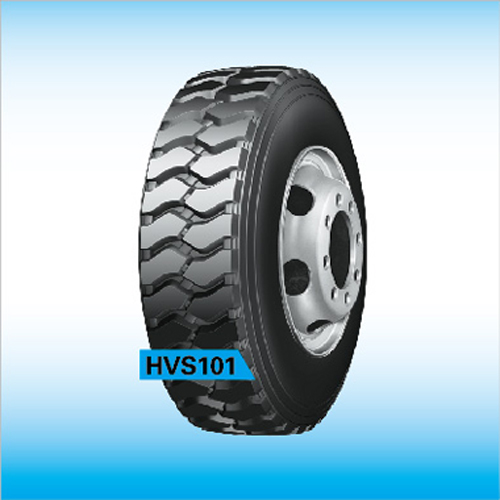

Drive HVS101
The main features:
Wide and thick blocks,extra deep tread depth,offer excellent traction
Designed with strong structure,good load capacity.
Long service life,good anti-wear and anti-puncture attributes to mine and mou and mountain roads
Product parameters
| SIZE | PR | LOAD INDEX | SPEED SYMBOL | PATTERN DEPTH (mm) | STANDARD RIM | PERMITTED RIM | MAX LOAD （Kg） | PRESSURE (Kpa) | NEW TIRE INFLATED DIMENSION (mm) | ||
| S | D | OD | SW | ||||||||
| ±1.0% | ±3.5% | ||||||||||
| 9.00R20 | 16 | 144/142 | K | 20.00 | 7 | 7.00T,7.5 | 2800 | 2650 | 900 | 1018 | 259 |
| 10.00R20 | 18 | 149/146 | K | 22.50 | 7.5 | 7.50V,8.0 | 3250 | 3000 | 930 | 1054 | 278 |
| 11.00R20 | 18 | 152/149 | K | 22.00 | 8 | 8.00V,8.5 | 3550 | 3250 | 930 | 1085 | 293 |
| 12.00R20 | 18 | 154/151 | K | 23.00 | 8.5 | 8.50V,9.0 | 3750 | 3450 | 830 | 1125 | 315 |
