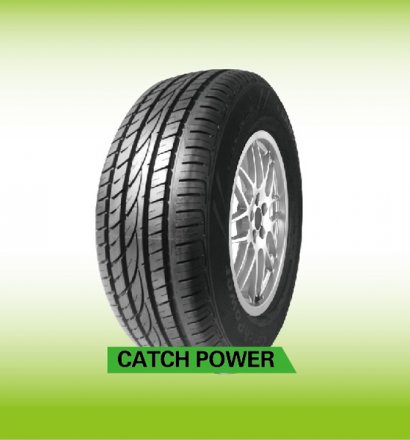

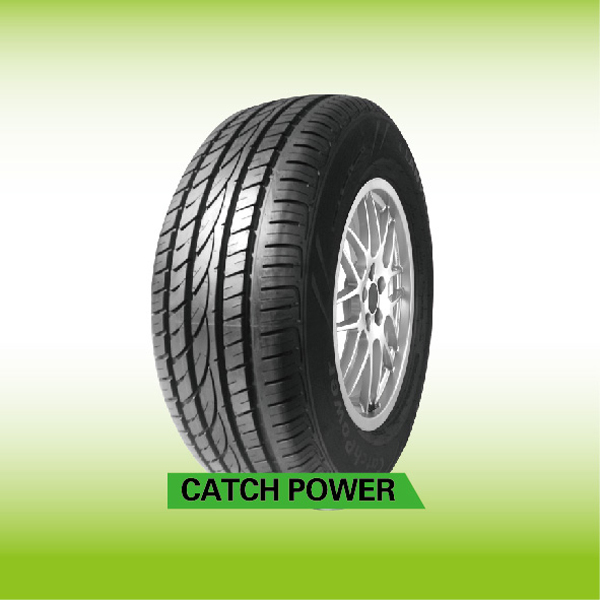

CATCH POWER
The main features:
Product parameters
| SIZE | LOAD INDEX | SPEED SYMBOL | STANDARD RIM | MAX LOAD(Kg) | PRESSURE(Kpa) | NEW TIRE INFLATED DIMENSION (mm) | |
| OD | SW | ||||||
| ±1.0% | ±3.5% | ||||||
| 235/65R17 | 108XL | H/V | 7.00 | 1000 | 340 | 738 | 240 |
| 245/65R17 | 107 | H | 7.00 | 975 | 300 | 750 | 248 |
| 255/65R17 | 110 | H | 7.50 | 1060 | 300 | 764 | 260 |
| 265/65R17 | 112 | H | 8.00 | 1120 | 300 | 776 | 272 |
| 215/60R17 | 96 | H | 6.50 | 710 | 300 | 690 | 221 |
| 235/60R16 | 100 | H | 7.00 | 800 | 300 | 688 | 240 |
| 195/55R15 | 85 | V | 6.00 | 515 | 300 | 595 | 201 |
| 205/55ZR16 | 94XL | W | 6.50 | 670 | 340 | 632 | 214 |
| 215/55ZR16 | 97XL | W | 7.00 | 730 | 340 | 642 | 226 |
| 215/55ZR17 | 98XL | W | 7.00 | 750 | 340 | 668 | 226 |
| 225/55ZR16 | 99XL | W | 7.00 | 775 | 340 | 654 | 233 |
| 225/55ZR17 | 101XL | W | 7.00 | 825 | 340 | 680 | 233 |
| 235/55ZR17 | 103XL | W | 7.50 | 875 | 340 | 690 | 245 |
| 235/55ZR19 | 105XL | W | 7.50 | 925 | 340 | 741 | 245 |
| 255/55R18 | 109XL | V/W | 8.00 | 1030 | 340 | 737 | 265 |
| 275/55R20 | 117XL | V | 8.50 | 1285 | 340 | 810 | 284 |
| 195/50R15 | 82 | V | 6.00 | 475 | 340 | 577 | 201 |
| 205/50ZR16 | 91XL | W | 6.50 | 615 | 340 | 612 | 214 |
| 205/50ZR17 | 93XL | W | 6.50 | 650 | 340 | 638 | 214 |
| 215/50ZR17 | 95XL | W | 7.50 | 875 | 340 | 719 | 245 |
| 225/50ZR17 | 98XL | W | 8.00 | 975 | 340 | 739 | 265 |
| 205/45ZR16 | 87XL | W | 7.00 | 545 | 340 | 590 | 206 |
| 205/45ZR17 | 88XL | W | 7.00 | 560 | 340 | 616 | 206 |
| 215/45ZR17 | 91XL | W | 7.00 | 615 | 340 | 626 | 213 |
| 225/45ZR17 | 94XL | W | 7.50 | 670 | 340 | 634 | 225 |
| 225/45ZR18 | 95XL | W | 7.50 | 690 | 340 | 659 | 225 |
| 235/45ZR17 | 97XL | W | 8.00 | 730 | 340 | 644 | 238 |
| 245/45ZR18 | 100XL | W | 8.00 | 800 | 340 | 677 | 243 |
| 275/45R20 | 110XL | W/Y | 9.00 | 1060 | 340 | 756 | 273 |
| 205/40ZR17 | 84XL | W/Y | 7.50 | 500 | 340 | 596 | 212 |
| 225/40ZR18 | 92XL | W/Y | 8.50 | 630 | 340 | 653 | 248 |
| 235/40ZR18 | 95XL | W | 8.50 | 690 | 340 | 645 | 241 |
| 245/40ZR18 | 97XL | W | 8.50 | 730 | 340 | 653 | 248 |
| 215/35R18 | 84XL | W | 7.50 | 500 | 340 | 607 | 218 |
| 235/35R19 | 91XL | W/Y | 8.50 | 615 | 340 | 647 | 241 |
| 245/35R19 | 93XL | W/Y | 8.50 | 650 | 340 | 655 | 248 |
| 225/35R20 | 90XL | W/Y | 8.00 | 600 | 340 | 666 | 230 |
| 245/35R20 | 95XL | W/Y | 8.50 | 690 | 340 | 680 | 248 |
